Model TRI-2600LT Highway Line Striping Truck

260 Gallon Paint Capacity 100 Yellow/100 White/50 Black Hydraulic Driven agitation with reinforced Stainless Steel Paint Vat.
1-1680 Lb Bead Tank With 12" Opening
Skip-line SC-12 Master Computer System LCD Display. No moving parts solid state sensing system. No magnets to loose. Up to 6 Guns standard, Digital speedometer readout standard. Footage counters standard, Bead delay system standard, dual output RPM/Marker with midspot Layout system standard.
2-UHMW Lined Hydraulic Gun Carriages with 48" Reach. Gun Carriage Shall have standard parallelogram design visable from the front or rear of the truck. Carriage wheel(s) to be poly filled with tapered roller bearings standard.    5-Airless Striping Guns Left Side  1-Airless Gun Right side
3-Handok Bead Guns Left Side    1-Handok Bead Gun Right Side
Standard with Driver/operator controls standard
3-Titan 9 GPM Severe Duty Hydraulic Driven Airless Paint Pumps
50 HP. Tier 4 Final CARB Certified Diesel Engine/ Hydraulic Power Unit
35 GPM Hydraulic Tank with 70000 BTU Hydraulic Oil Cooler
Cab operated Airless Pump Pressure Controls
Hydraulic lift Standard Line Guide with 55 Degree lift from road surface. Movable from left to right.
easily foldable allowing for for full cab tilt even when in the up or folded position.
50 GPM Stainless Steel Low Press Suction Strainers
All Above Deck Stainless Plumbing (Except tank drains)
All hosing protected above deck inside Hose Runs.
Standing Deck platform above all main paint hosing and valving.
Bead Loading 200 Lbs per minute Jet Pump loading. With 12' 2" Suction Hose
Atlas Copco 46 CFM Hydraulic driven Air Compressor
18' Standard 3/16" Diamond Plated Steel Deck With Rear Gates and 1600 Lb lift gate.
Standard internal rear bed pivoting equipment tie down mounts. Manufactured for extreme duty. 3" channel Construction.  Longitudinal Rails to be 5 Chanel @6.7# foot.
Wanco 36 x 72 180 Degree Arrowboard with LED Lighting Head Board Mounted.
2-15 Joule Amber Strobe Lights
Standard Fenders

Optional Equipment:
  • 50' Airless hose Reel with extension and hand gun
  • Mini Stencil Rack
  • Heater System
  • Rear Operator Station(s)
  • Intercom System
  • Rear Operators Cab
  • Air Conditioning of rear cab
  • Tip Flushing
  • Loading Pumps
  • Removable S.S. Paint Vat System50' Airless hose Reel with extension and hand gun
  • Dual SC-12 Computer System
  • Medium Air Driven Airless operation (185 CFM Air compressor)
  • Diesel Engine Upgrade (up to 99 HP)

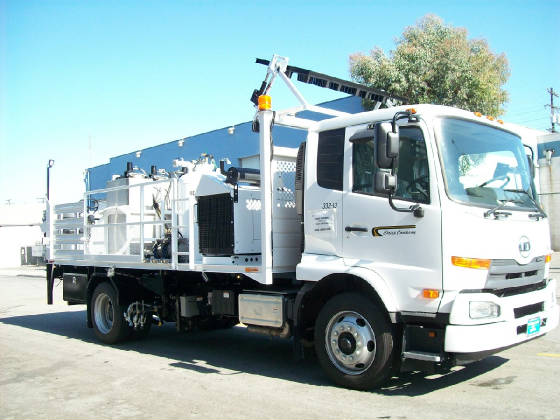

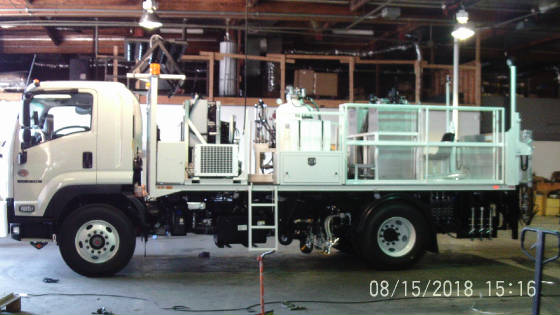

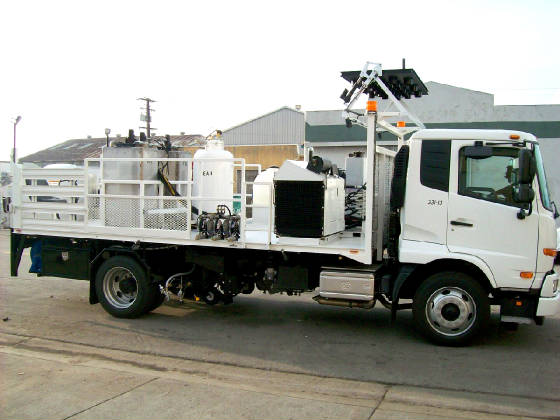

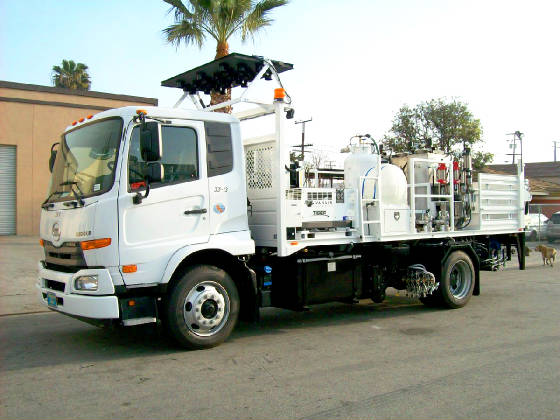

    *****(shown with optional equipment)****

Built for Check Mark Services Ltd. La Crete, Alberta Canada
Super Seal and Stripe, Fillmore, California USA
