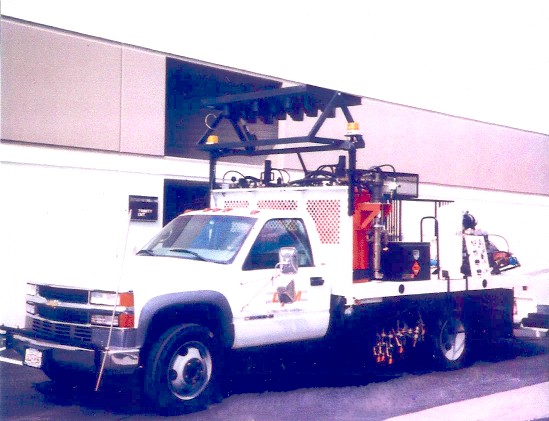

Model TRI-1400LT Highway Line Striping Truck

Driver/operator controlled, up to 158 gallon reinforced stainless steel paint vat, all stainless steel plumbing, 3-hydraulic paint agitators (stainless wetted parts), 12 gallon capacity ASME galvanized flush system, 840lb glass bead tank, 4-ITW Binks #30 Bead Guns, 30 HP. C.A.R.B. approved Isuzu industrial diesel engine power unit with a pressure compensated hydraulic pump directly attached, 16 CFM reciprocating air compressor, hydraulic driven, 11 gal., air storage tank, 2-36" reach gun carriages cab controlled, 6-Graco 206-513 airless striping guns, SS-5 Skip-Line digital striping computer system with 6-gun capabilities, counters and dot (button layout) spotter function standard, 3-Titan 1:1 Model 441-315 severe duty airless paint pumps proven for water base and low voc. service, liquid filled gauges, standard line guide, one year limited warranty.
Optional Equipment:
  • Drum mounting
  • Hydraulic drum agitation
  • Hydraulic or pneumatic lift line-guide
  • 48" reach gun carriages
  • 50ft airless paint reel withTitan hand gun
  • Stencil rack
  • 600ft rope reel/manual or electric
  • Lighting systems
  • Arrowbaords
  • Paint heater system
  • Tip flushing system
  • Additional paint and bead guns
  • Rear operator stations
  • Operators station semi-enclosed
  • Bomb sight pointer
  • Laser pointer
  • Paint loading pumps
  • Liftgate
  • UHWM frictionless sliding carriages
  • Bead loading system
  • ASME paint tanks.
