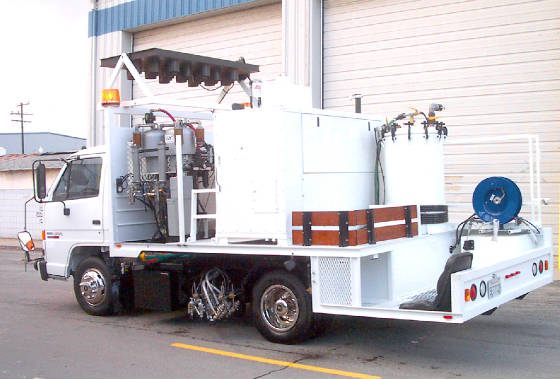

Model TRI-1450A Highway Line Striping Truck
(Air Powered Airless)

Standard Equipment:
Stainless steel paint vat up to 158 gallons total paint capacity with all stainless plumbing, 2-air agitation units stainless steel fitted, 12 gallon capacity ASME galvanized flush system, 840lb glass bead tank, 3-ITW Binks bead gun, 100 CFM grimmer Schmit diesel powered screw compressor, 1-36" reach driver/controller 12 VDC hydraulic controlled gun carriage, 4-Graco 206-523 airless striping guns, skip-line digital striping computer with 6 gun capability counters and dot (button) spotter function standard, 2-Titan 20:1, model 742-245 severe duty, airless paint pumps, all liquid filled gauges, standard line guide, a standard one year warranty. 14,500lb, GVW *Also available in TRI-1800 model for higher capacity*
Optional Equipment:
  • Black paint system
  • Drum mounting in the place of a paint vat
  • Pneumatic drum agitation
  • Liftgate with steak bed
  • Hydraulic or pneumatic lift line guide
  • Dual rear operators station
  • 48" reach gun carriages
  • UHMW frictionless slide carriages(s)
  • 50ft airless pint reel with Titan hand gun
  • Stencil rack
  • 600ft rope reel/manual or electric
  • Lighting systems
  • Arrowbaords
  • Paint heater system
  • Tip flushing
  • Additional paint and bead guns
  • Air compressor upgrade
  • Paint and bead loading systems.
