TRI-1800LT-D

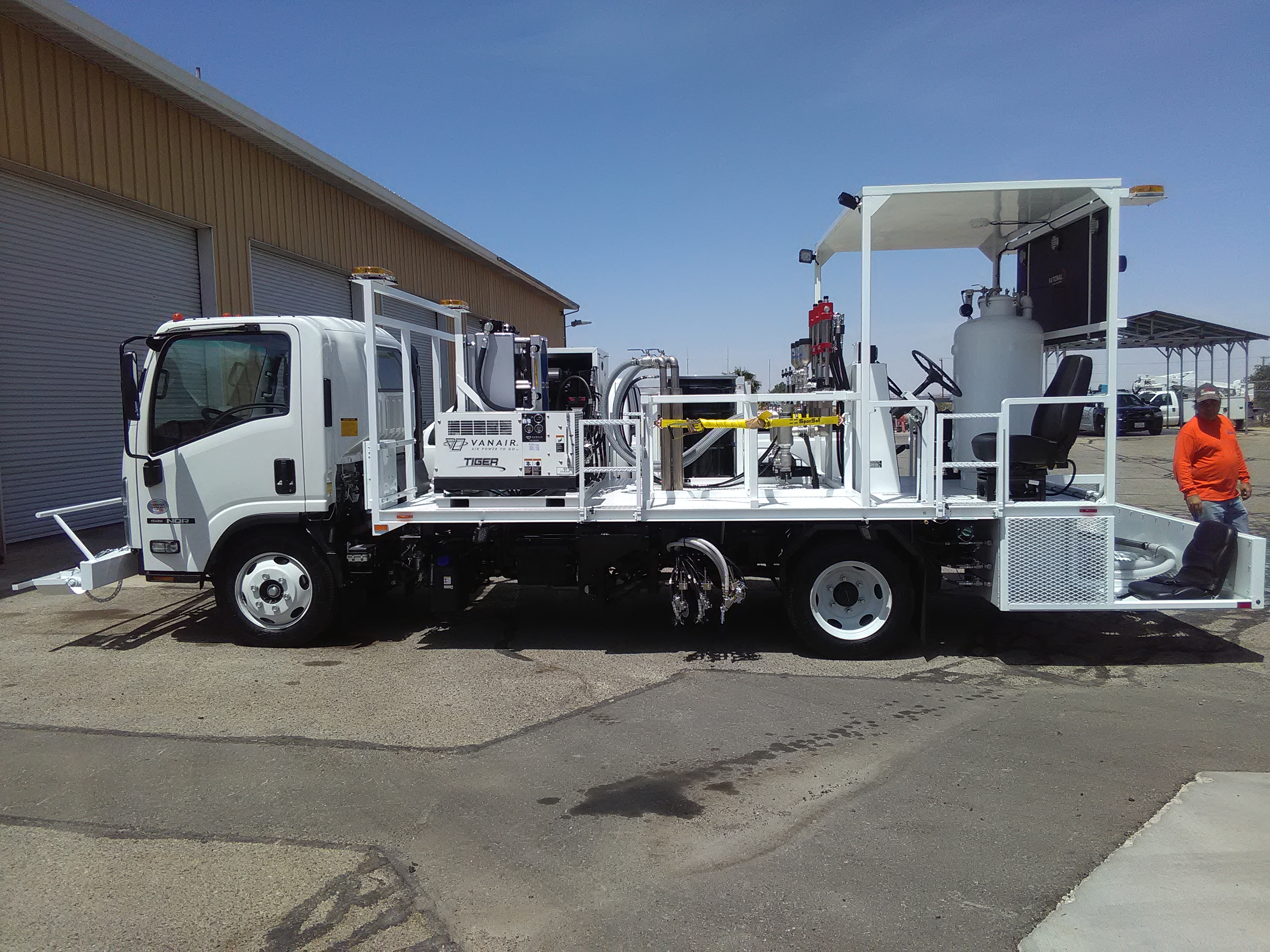

 Model TRI-1800LT Highway Line Striping Truck

Specifications:
Rated GVW 19500 (Isuzu Model NRR or Hino 195)
14 Foot 3" Channel Structural Steel with 3/16"Diamond plate deck.
Paint Capacity 220 Gallons 4-55 Gallon Standard Drums with DOT Straps.
Bead Capacity 840LBS
3-Titan Speeflo 9 Gpm Severe Duty Hydraulic Driven Airless Paint Pumps.
Operator pressure control station
Right and Left 4' UHMW Hydraulic gun carriages.
Carriages to be equipped with all standard ball bearing parallelogram operation.
Carriage visibility from the front and rear of the unit.
Standard striping computer shall be capable of up 6 Lines either side of the unit.
Standard with button layout/reflector feature, Digital speedometer
Front cab operation (optional)
Standard Hydraulic Lift Lineguide
40 @100 PSI Hydraulic Driven Air Compressor.
EPA Certified 50 HP. Continuous Duty Diesel Engine
Complete Power unit skid mounted.
45 GPM Hydraulic Hydra Kool Hydraulic oil Conditioning system
Pressure Compensated piston pump

Optional Equipment:
  • 50' Airless hose reel with extension and hand gun
  • Mini stencil rack
  • Heater System
  • Rear Operator Station(s)
  • Intercom System
  • Rear operators Cab
  • Air conditioning of rear cab
  • Loading pumps
