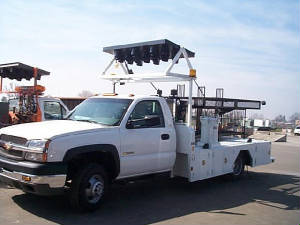

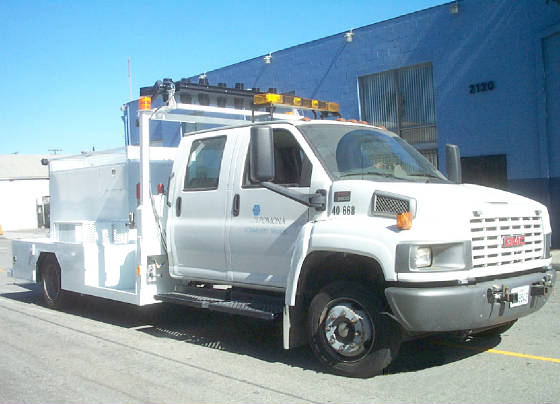

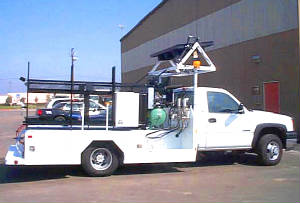

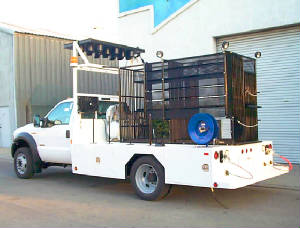

Model TRI-ST Highway Stencil Truck
   Model TRI-ST Eco-Freindly Highway Stencil Truck

Standard Features:
2-Titan 1.8 GPM Severe Duty hydraulic driven paint pump for Low VOC and waterbase traffic paint material.
2- 50' x 3000 PSI American made Airless paint reel with rebuildable stainless steel swivel joint.
2-Titan 550-100 Stainless steel airless hand gun with choice of extension and reversable type tip.
2-Removable solvent bath holster
7 GPM Hydraulic Clutch pump, Engine mounted with factory approved mounting kit.
(choice of fan-belt or PTO driven)
Stencil Rack  custom made per individual specification (Standard)
4- Cone Holders (Location per customer request)
4 to 6-5 Gallon Paint Storage Containers depending upon truck wheel base
Removal Paint tray
2- Amber 15 Joule Strobe Lights
All SAE hydraulic Hoses
Reinforced 11 Gauge Side Panel  construction
Heavy Duty square tube construction
1/8" steel diamond plate decking
7 Cu. Foot Tool box
14" Formed Steel Bumper
Reinforced side hinged doors with zerk fittings


Optional Equipment:
  • Additional paint systems up to 4
  • Glass Bead application system
  • Water flushing system
  • Sign storage compartment
  • Special Lighting arrowboard
  • Work Lights
  • Additional strobe lights system
  • Hydraulic system upgrade up to 11 GPM @1000 RPM
  • Special hydraulic cooling system (Required on all multi pump systems and air compressor systems.)
  • Larger Paint system(s) up to 2.6 GPM Each pump
  • Stainless steel pumping systems
  • Hydraulic driven air compressor up to 14.5 CFM @100PSI
  • Gasoline driven Aircompressor 25.1 CFM @175 PSI
  • OSHA Eyewash Station
  • Stainless Steel Paint vat(s)
  • Hydraulic Paint Agitation
