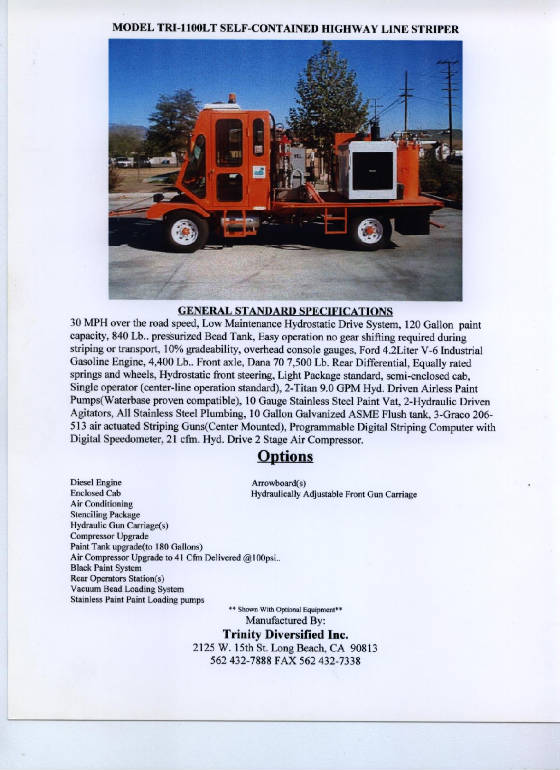

Model TRI-1100 Industrial Duty Self - Contained Highway Line Striping Truck
120 Gallon Stainless
Steel Paint Vat/With Hydraulic Driven Agitators with stainless steel shaft assemblies.
Liter Ford Carb Approved V-6 Gasoline Engine
Hydrostatic Drive System Capable Of
35 Mph Road Speed
28 CFM Hydraulic Driven Air compressor
Air Suspension Seat Standard
4400 Lb Front Axle
7500Lb Rear Axle
Transmission: Variable Displacement Hydrostatic Motor
2- Titan 9.0 GPM Hydraulic Driven Airless Paint Pumps
4- Automatic Ingresoll-Rand
ARO Airless Paint Guns
3-ITW Binks #30 Bead Guns
Pumps: Variable Displacement Hydraulic Pump Manual Servo Controlled, Hydraulic system controlled by Pressure compensated hydraulic
35 Gallon Hydraulic Tank
Striping Computer up
to 6 gun capability. Computer standard with built-in digital speedometer and footage counter.
Standard front center mounted gun carriage. With Hydraulic gun carriage raising and lowering controls.
Carriage striping guns within 18" of Front axle for precise re-striping
City Of South Gate, CA TRI-1100 LT
